80800S - Single-Needle Sewing Machine

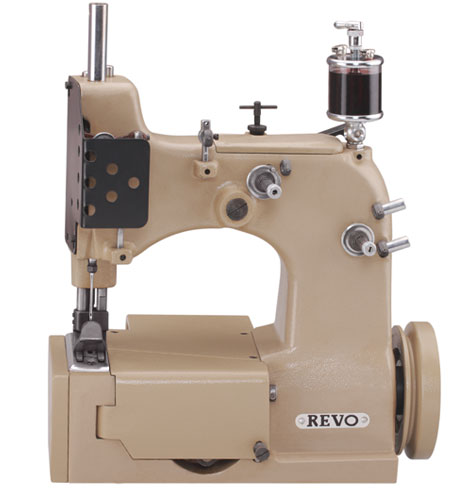

Revo® 80800S-Single Needle, Two Thread, Single Double-Chain Stitch Sewing Head 80800S

Revo® 80800S Series are suited perfect for use with conveyor systems handling heavy workload. The machines are capable of sewing on materials with thickness up to 15mm, making them ideal for use on heavy and thick materials. Revo® 80800S Series can stitch on all types of bag material such as Jute, Woven HDPE, PP and kraft-wall paper bags. Durable construction of Revo® 80800S Series offers reliable performance for years. The oil reservoir provides continuous lubrication to the moving parts inside the machine, ensuring minimum downtime. Sharp mechanical cutters are standard in the Revo® 80800S Series to cut the thread chain after the bag has been securely stitched.

SPECIFICATIONS

SEWING SPEED : 2100 stitches per minute

NEEDLE  : RW-S-Single Double-Chain Stitch
RW-D-Twin Parallel Double-Chain Stitch

STITCH WIDTH  : 5 to 9mm (adjustable)

MAXIMUM MATERIAL THICKNESS  : 15mm

THREAD  :  Cotton or Synthetic

THREAD CONE PRICE  : 1 USD to 1.50 USD

WEIGHT  : 40 Kg.

TYPE OF STITCH  : RW-S- Single Double-Chain Stitch
RW-D- Twin Prallel Double-Chain Stitch

THREAD CUTTER  : In-built mechanical thread cutter

LUBRICANT  : Oil reservoir system with internal oil lines

CREPE-TAPE ROLL PRICE  : 1 USD to 2 USD
