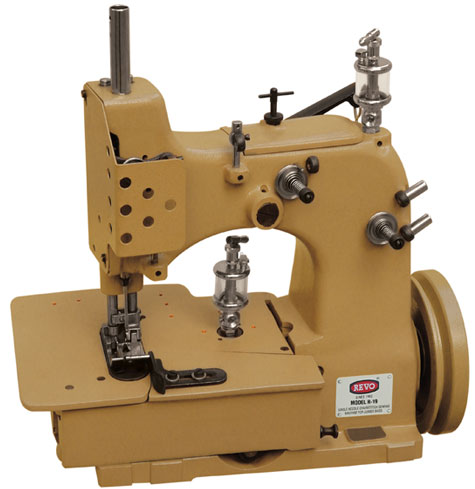

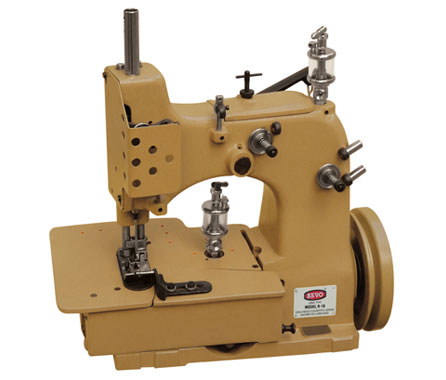

R-19HS Single Needle Hemming Machine

Revo® Bag Hemming Sewing Machines - Single Needle, Two Thread R-19HS

The R-19 Series machines are ideal for hemming openings of medium to heavy weight Jute or PP/PE woven cloth bags for manufacturing FIBC bulk bags. These are special Heavy Duty Machines are capable of sewing on extra thick material with thickness up to 15mm.

SPECIFICATIONS

MAXIMUM SPEED : 2100 stitch per minute

STITCH LENGTH : 6.5mm to 13mm

THREAD : Jute, Synthetic or Cotton

SEAM TYPE : Two thread/ Single chain-stitch seam (one needle, one looper, two thread)

MATERIAL THICKNESS  : Up to 15mm

NEEDLE SIZE : DR X 2-28 (organ), DR X 2 200/25 Groz Beckert

MOTOR : 500W, 2800rpm, 1 or 3 phase
